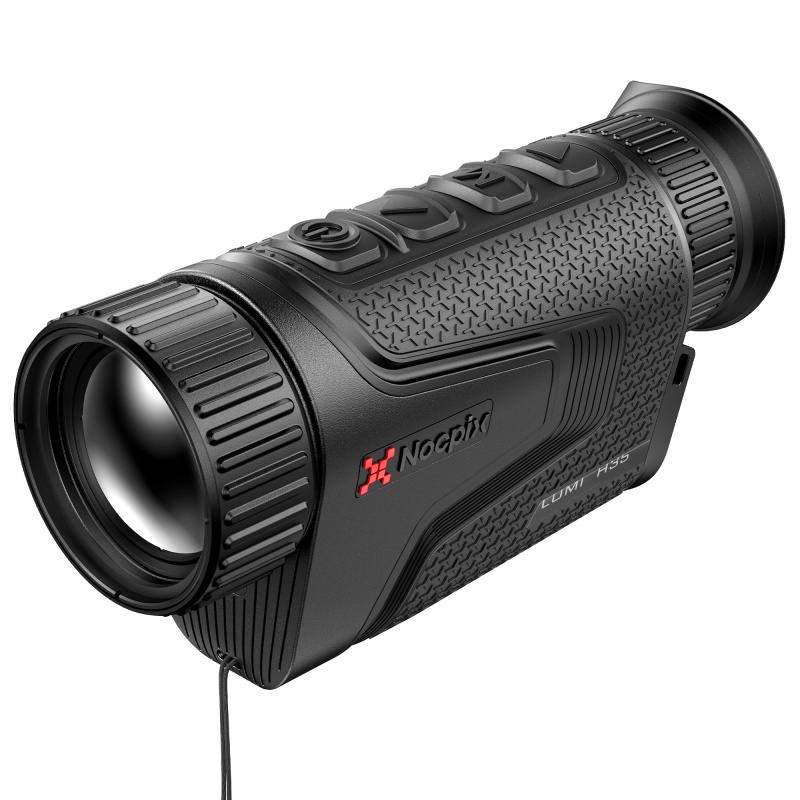

The Nocpix LUMI H35 is a lightweight, field-ready thermal monocular built for reliable heat detection in forest, hill, and open-ground environments. Its 35 mm-class germanium objective balances range and portability, producing strong thermal contrast at dusk and night while keeping the unit small enough for handheld scanning on the move.

A fast 60 Hz imaging core ensures fluid live viewing when sweeping terrain or tracking movement, and onboard media recording supports scouting and documentation workflows. The fully sealed IP67 body protects from rain, dust, and short submersion, while the USB-C interface simplifies charging and data transfer. A replaceable rechargeable battery system supports extended outings with optional spare packs.

Specifications

• Thermal sensor resolution: 640 × 512 px (VOx)

• Pixel pitch: 12 µm

• Refresh rate: 60 Hz

• Objective lens: 35 mm (germanium/germanium-class), manual focus

• Device type: handheld thermal monocular

• Magnification: optical base with digital zoom support

• Zoom system: multi-step digital magnification

• Vision modes: multiple selectable thermal colour palettes

• Media recording: internal photo & video capture and playback

• Interface/ports: USB-C for charging and data transfer

• Housing protection rating: IP67 (waterproof, dust-tight)

• Battery system: replaceable rechargeable Li-ion pack

• Form factor: compact, lightweight, travel-friendly

• Use case profile: day/night capable thermal spotting with terrain scanning emphasis
