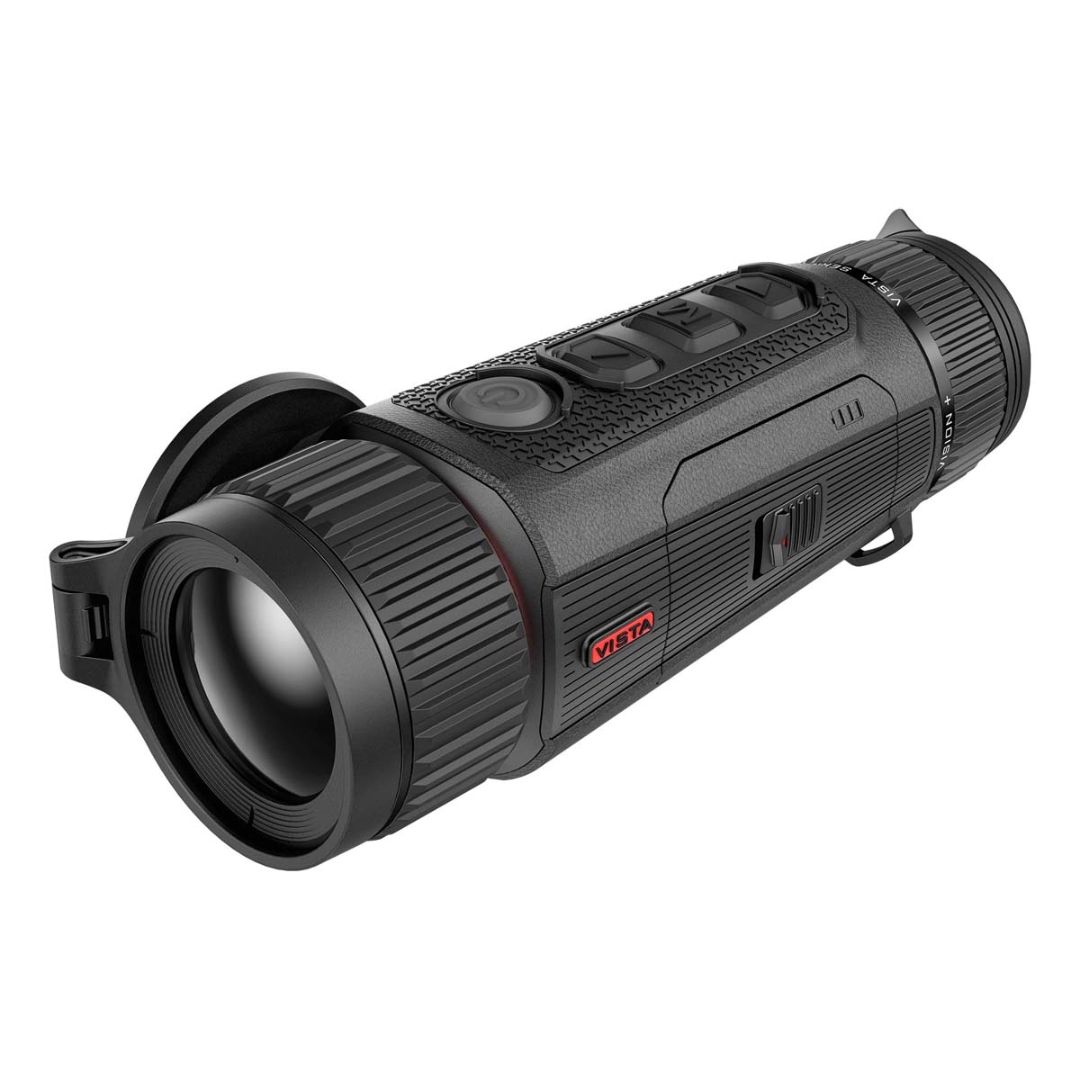

The Nocpix VISTA H35 is engineered for mobile, high-contrast thermal scanning in a smaller, more portable form than 50 mm-class units. The 35 mm germanium objective balances range and size, delivering strong thermal detail at dawn, dusk and night while maintaining a lightweight profile for handheld use.

A 60 Hz imaging core ensures fluid live viewing when tracking movement or sweeping terrain. Internal media recording supports scouting and observation workflows, while the fully sealed IP67 housing protects against rain, dust and short submersion — suited to forest, field, hill, and travel deployment.

Specifications

• Thermal sensor resolution: 640 × 512 px (VOx)

• Pixel pitch: 12 µm

• Refresh rate: 60 Hz

• Objective lens: 35 mm (germanium), manual focus

• Form factor: handheld monocular

• Magnification: optical base with digital zoom support

• Zoom system: multi-step digital zoom

• Display/vision modes: multiple thermal colour palettes

• Media recording: internal photo and video capture

• Interface: USB-C for charging and data transfer

• Housing protection rating: IP67 (waterproof, dust-tight)

• Power system: replaceable rechargeable battery pack

• Operating conditions: day/night use, wide-area outdoor thermal observation
